What is an air compressor?

Air compressors are machines.  They provide power to all types of machinery.  Some of the places that use air compressors are:







Dry cleaners

Food manufacturing plants

Schools

Car repair facilities

Hotels

Hospitals

Prisons

General manufacturing

Stone and granite companies

Airlines







Concrete plants

Office buildings

Factories

Thinking about it, most industries use air compressors as a form of energy.  Every bag of potato chips; almost every pneumatic tool and most manufacturing facilities use air to run their facilities.  It would be hard pressed to find some industry that doesn’t use air!!










what are the parts of an air compressor?



The basic components of the air compressor are
1. The electric motor

2. The pump
Compressor Pump:


The pump compresses the air and discharges it into the receiver. Two-stage air compressors have a minimum of two pump cylinders. By compressing the air twice, first in a larger, low pressure cylinder, then in a smaller, high pressure cylinder, two-stage compressors can produce pressures.









www.hkaircompressors.com





compressor pumps from 1.5hp to 300hp pumps:




WWW.HKAIRCOMPRESSORS.COM

214-428-2868
HKAIRCOMPRESSORS@GMAIL.COM






WWW.FSCURTIS.COM





MOST COMMON AIR COMPRESSOR PUMPS

CFM @ Dimensions Weight
HP Model Part No. 125 PSI L×W×H lbs
0.75HP ES-06 FES06AB 3.1 10.1×12.2×8.9 33
2HP ES-10 FES10AB 7.0 12.4×14.0×10.6 50
3-5HP ES-20 FES20AB 10.4 14.1×18.3×12.6 70
5HP ES-30 FES30B 14.3 15.5×20.4×14.9 112
5-7.5HP ES-50 FES50B 19.5 18.1×23.3×16.7 157
10HP ES-100 FES100B 37.7 20.9×25.5×20.1 267
15HP ES-150 FES150B 53.3 24.4×30.3×20.2 393
Two stage (135-175 PSI)
HP Model Part No. CFM @ Dimensions Weight
125 PSI L×W×H lbs
2-3HP E-23 FE23AB 6.0 14.1×18.4×12.6 67
5HP E-50 FE50B 17.0 18.1×23.3×16.7 155
5-7.5HP E-57 FE57AB 18.0 21.0×16.3×16.1 134
7.5-10HP E-71 FE71B 26.1 20.9×13.8×20.1 262
15HP E-15C FE15C 46.5 26.0×30.3×22.3 393



ML SERIES COMPRESSOR PUMPS:

Weight
Model HP Part No. 1-Price
lbs.
D96 3-5 FMLD96 190 $2,911
C79 7.5 FMLC79 200 $4,527
D97 10-15 FMLD97 480 $5,148
C89 15-20 FMLC89 480 $7,024
C98 20-30 FMLC98 880 $9,566



CW SERIES - LARGE INDUSTRIAL AIR COMPRESSOR BASIC PUMPS: 40HP - 125HP


Dimensions Weight
HP Model Part No. L×W×H lbs Price
40 C-100S FCWS10 81×45×47 1950 $34,878
50-60 C-200S FCWS20 82×43×53 2100 $38,521
75-125 C-300S FCWS30 92×57×75 3000 $60,108
Medium Pressure (100-150 PSIG)
HP Model Part No. Dimensions Weight Price
L×W×H lbs
40 C-100 FCWC10 54×40×44 1900 $39,043
50 C-200 FCWC20 54×40×45 2050 $44,249
60 C-260 FCWC26 54×42×45 2050 $49,325
75-125 C-300 FCWC30 54×54×63 3000 $68,193
High Pressure (175-250 PSIG)
HP Model Part No. Dimensions Weight Price
L×W×H lbs
40-50 C-150H FCWH15 54×40×44 1850 $42,948
50-60 C-260H FCWH26 54×42×45 2050 $52,058
75-125 C-300H FCWH30 54×54×63 3000 $85,888













3. The tank



TANK SIZES:





Part No. Color Gallon Size PSI
FTKRM30 Gray Primer 30 16x38 200
FTKRM60 Gray Primer 60 20x48 200
FTKRM80 Gray Primer 80 20X63 200
FTKRM83 Gray Primer 80 24X46 300
FTKRM120 Gray Primer 120 30x45 200
FTKRM200 Gray Primer 200 30x72 200
FTKRM2003 Gray Primer 200 30X72 300
FTKRM240 Gray Primer 240 30x64 200
FTKRM2403 Gray Primer 240 30X64 300
FTKRM400 Gray Primer 400 36x93 200
FTKRM500 Gray Primer 500 36x116/117 200
FTKRM660 Gray Primer 660 42x117/120 200
FTKRM1060 Gray Primer 1060 48x144 200
FTKRM1550 Gray Primer 1550 54X166 200
FTKRM2200 Gray Primer 2200 54x166 200
FTKRM2560 Gray Primer 2650 60x220 200
FTKRM3000 Gray Primer 3000 66X217 165
FTKRM5000 Gray Primer 5000 72X305 200




MOST COMMON COMPRESSOR TANK SIZE: 80 GALLONS


AIR COMPRESSOR TANKS









HORIZONTAL OR VERTICAL TANKS



AIR COMPRESSOR TANKS


AIR COMPRESSOR TANKS
214-428-2868







CALL FOR PRICES: 214-428-2868
An electric Motor powers the compressor pump. The motor then drives a pulley via one or two belts, which help in transferring power from motors to the pump pistons through a flywheel and crankshaft














WHAT DO YOU NEED TO KNOW ABOUT YOUR COMPRESSOR MOTOR?


1. Do you have single or 3 phase coming into your building?

2. What horsepower do you have?

3. What is the frame size of your motor?

4. What is the RPM on the motor?

5. What voltage do you need?  230/ 480?

6. For some motors, you will need to know the shaft size.

Here is the #1 best selling air compressor motor and size.

YOU CAN USUALLY TELL A 3 PHASE MOTOR FROM A SINGLE PHASE MOTOR BY JUST LOOKING AT THE MOTOR.

for example: a 1 phase motor typically has the run time and start capacitors on the outside of the motor.  While a 3 phase motor will have the capacitors enclosed inside the motor.  In the picture below, you can definitely see the run time and start capacitors on top of the motor.  Although they are enclosed, probably so you don't shock yourself, regardless, they are outside the motor.


BALDOR 5HP/ 184T/ 1800RPM

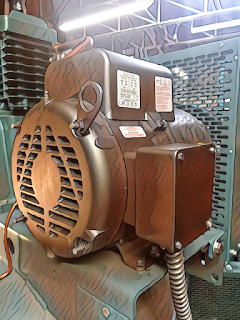

THIS IS A SINGLE PHASE MOTOR.  SEE THE BOX ON TOP OF THE MOTOR.  IT HOUSES THE RUN TIME AND START CAPACITORS.








THIS IS A 3 PHASE MOTOR.  LOOK.  NO BOX.  THE RUN AND START CAPACITORS ARE ENCLOSED INSIDE THE MOTOR:







JUST AN FYI: ON ALMOST EVERY MOTOR IS A SMALL PLATE ON EITHER THE TOP OF THE MOTOR OR ON THE SIDE OF THE MOTOR WITH VALUABLE INFORMATION.  IF YOU ARE REPLACING THE MOTOR YOU WILL NEED TO KNOW SOME OF THE BASIC INFORMATION SUCH AS:

HP (HORESPOWER)
RPM (ROTATIONS PER MINUTE)
FR (FRAME SIZE)
VOLT (VOLTAGE)
PH (PHASE...SINGLE OR 3 PHASE)



At H&K, we repair and sell all types of compressor motors.


RPM Voltage Frame Motor Frame Material
10 HP
1770230/460215TSteel
1770230/460215TSteel
3475208-230/460213TSteel
3475208-230/460213TCRolled Steel
5 HP
1160208-230/460215TSteel
1750208-230/460184TSteel
1750208-230/460184TSteel
1750208-230/460184TSteel
3450208-230/460182TSteel
7-1/2 HP
1770208-230/460213TSteel
1770230/460213TSteel
3450208-230/460184TSteel
1 HP
1155208-230/46056Steel
1155208-230/46056CRolled Steel
1155208-230/460145TCast Iron
1155208-230/460145TSteel
1760208-230/46056Steel
1760208-230/460143TCast Iron
1760208-230/460143TSteel
1760208-230/460143TCRolled Steel
3450230/46056Steel
1-1/2 HP
1760208-230/46056Steel
1760208-230/46056CRolled Steel
1760208-230/460145TSteel
1760208-230/460145TCRolled Steel
1765208-230/460145TCast Iron
1765208-230/460145TCCast Iron
3500208-230/46056Steel
3500208-230/46056CRolled Steel
3500208-230/460143TCast Iron
3500208-230/460143TSteel
1/2 HP
1725230/46048Rolled Steel
1725230/46056Rolled Steel
1735230/46056CRolled Steel
3450230/46056Rolled Steel
3450230/46056CRolled Steel
1/3 HP
1140230/46056Rolled Steel
1725230/46056Rolled Steel
1/4 HP
1140230/46048Rolled Steel
1140230/46056Rolled Steel
10 HP
1180230/460256TCast Iron
1760230/460215TCast Iron
1760230/460215TCCast Iron
1770208-230/460215TSteel
3490208-230/460215TSteel
3490230/460215TCast Iron
2 HP
1165230/460184TCast Iron
1175208-230/460184TSteel
1750208-230/460145TCast Iron
1750208-230/460145TCCast Iron
1755208-230/46056Steel
1755208-230/46056CRolled Steel
1755208-230/460145TSteel
1755208-230/460145TSteel
3490208-230/46056Steel
3490208-230/460145TCast Iron
3490208-230/460145TSteel
3 HP
1160230/460213TSteel
1165208-230/460213TCast Iron
1755208-230/460182TCast Iron
1755208-230/460182TCCast Iron
1760208-230/460182TSteel
1760208-230/460182TSteel
1760208-230/460182TCRolled Steel
3450208-230/460145TSteel
3450208-230/460184TCRolled Steel
3460208-230/460182TCast Iron
3490208-230/460182TSteel
3/4 HP
1725208-230/46048Rolled Steel
1725208-230/46056Rolled Steel
1750230/46056CRolled Steel
3450230/46056Rolled Steel
3450230/46056CRolled Steel
5 HP
1160208-230/460215TCast Iron
1160208-230/460215TSteel
1750208-230/460184TCast Iron
1750208-230/460184TSteel
1750208-230/460184TSteel
1750208-230/460184TCCast Iron
1750208-230/460184TCRolled Steel
3450230/460184TSteel
3475208-230/460184TCast Iron
7-1/2 HP
1180230/460254TCast Iron
1770230/460213TCast Iron
1770230/460213TSteel
1770230/460213TCCast Iron
3450208-230/460184TSteel
3510208-230/460213TCast Iron
1 HP
1140115/230184Rolled Steel
1725115/230143TRolled Steel
1725115/230143TRolled Steel
1725115/23056HRolled Steel
1725115/23056HRolled Steel
1725115/23056HRolled Steel
1725115/230143TCRolled Steel
1760115/23056HRolled Steel
3450115/208-23056HRolled Steel
3450115/23056CRolled Steel
3450115/23056CRolled Steel
3450115/23056HRolled Steel
3450115/23056HRolled Steel
1-1/2 HP
1140115/230184TRolled Steel
1760115/23056HRolled Steel
3450115/23056CRolled Steel
3450115/230143TRolled Steel
3450115/23056HRolled Steel
3450115/23056HRolled Steel
3450115/230143TCRolled Steel
1/2 HP
1140115/23056CRolled Steel
1140115/23056HRolled Steel
1725115/23048Rolled Steel
1725115/23048Rolled Steel
1725115/23056Rolled Steel
1725115/23056Rolled Steel
1725115/23056Rolled Steel
1725115/23056CRolled Steel
1745115/23056Rolled Steel
1760115/230145TRolled Steel
3450115/23048Rolled Steel
3450115/23056Rolled Steel
3450115/23056Rolled Steel
3450115/23056CRolled Steel
1/3 HP
1140115/23048Rolled Steel
1140115/23056Rolled Steel
1725115/23048Rolled Steel
1725115/23048Rolled Steel
1725115/23056Rolled Steel
1725115/23056Rolled Steel
1725115/23056CRolled Steel
1740115/23056Rolled Steel
3450115/208-23048Rolled Steel
3450115/208-23048Rolled Steel
1/4 HP
1140115/23048Rolled Steel
1140115/23056Rolled Steel
1725115/23048Rolled Steel
1725115/23048Rolled Steel
1745115/23048Rolled Steel
3450115/23042Rolled Steel
2 HP
1140115/230215Rolled Steel
1725115/208-230182TRolled Steel
1725115/230184Rolled Steel
1725115/230184CRolled Steel
1725115/230182TRolled Steel
1725115/230182TCRolled Steel
1740115/230182TRolled Steel
3450115/23056CRolled Steel
3450115/230145TRolled Steel
3450115/23056HRolled Steel
3450115/23056HRolled Steel
3450115/230143TCRolled Steel
3 HP
1725115/230184TCRolled Steel
3450115/230182TRolled Steel
3450115/230182TCRolled Steel
3/4 HP
1140115/23056CRolled Steel
1140115/230143TRolled Steel
1140115/23056HRolled Steel
1725115/23056CRolled Steel
1755115/208-23056Rolled Steel
3450115/23056Rolled Steel
3450115/23056Rolled Steel
3450115/23056CRolled Steel
3450115/23056CRolled Steel
1 HP
1725115/230143TRolled Steel
1725115/230143TRolled Steel
1-1/2 HP
1725115/230145TRolled Steel
1725115/230145TRolled Steel
1725115/230145TCRolled Steel
3450115/230143TRolled Steel
1/3 HP
3450115/208-23048Rolled Steel
10 HP
1725230215TRolled Steel
3450230215TRolled Steel
2 HP
1725115/208-230145TRolled Steel
1725115/230145TRolled Steel
1725115/230182TRolled Steel
3450115/230145TRolled Steel
3 HP
1725115/230184TRolled Steel
1725115/230184TCRolled Steel
3450115/230182TRolled Steel
3450115/230182TCRolled Steel
3/4 HP
1750115/23056CSteel
5 HP
1725230184TRolled Steel
1725230184TRolled Steel
1725230213TRolled Steel
3450230184TRolled Steel
7-1/2 HP
1725230215TRolled Steel
3450230213TRolled Steel
1 HP
1725115/23056CRolled Steel
3450115/23056CRolled Steel
1-1/2 HP
1725115/23056CRolled Steel
3450115/23056CRolled Steel
1/2 HP
1725115/23056CRolled Steel
3450115/23056CRolled Steel
1/3 HP
1725115/23056CRolled Steel
3450115/208-23056CRolled Steel
1/4 HP
1725115/23056CRolled Steel
10 HP
1740230213TCRolled Steel
3450230215TCRolled Steel
2 HP
3450115/23056CRolled Steel
3450115/230145TCRolled Steel
3/4 HP
1725115/23056CRolled Steel
3450115/23056CRolled Steel
1 HP
1760208-230/460143TCCast Iron
1760230/46056CRolled Steel
1760230/460143TCRolled Steel
1-1/2 HP
1760208-230/460145TCRolled Steel
1765208-230/460145TCCast Iron
3500208-230/460143TCCast Iron
3500230/460143TCRolled Steel
10 HP
1760230/460215TCCast Iron
1770230/460215TCRolled Steel
3490230/460215TCCast Iron
3490230/460215TCRolled Steel
2 HP
1165208-230/460184TCCast Iron
1175208-230/460184TCRolled Steel
1750208-230/460145TCCast Iron
1755208-230/46056CRolled Steel
1755230/460145TCRolled Steel
3490230/46056CRolled Steel
3490230/460145TCRolled Steel
3 HP
1160208-230/460213TCRolled Steel
1760208-230/460182TCRolled Steel
3450208-230/460145TCRolled Steel
3450208-230/460182TCRolled Steel
3460208-230/460182TCCast Iron
3/4 HP
3450230/46056CRolled Steel
5 HP
1160208-230/460215TCRolled Steel
1160230/460215TCCast Iron
1750208-230/460184TCCast Iron
1750208-230/460184TCRolled Steel
3450230/460184TCRolled Steel
3475208-230/460184TCCast Iron
7-1/2 HP
1770230/460213TCCast Iron
1770230/460213TCRolled Steel
3450208-230/460184TCRolled Steel
3510230/460213TCCast Iron
3520230/460213TCRolled Steel
1-1/2 HP
1725115/208-230145TRolled Steel
1725115/208-23056HRolled Steel
1725115/23056CRolled Steel
1725115/23056HRolled Steel
1725115/23056HRolled Steel
1725115/230145TCRolled Steel
1755115/208-230145TRolled Steel
1/8 HP
1725115/23042Steel
10 HP
1740230215TRolled Steel
3450230215TRolled Steel
2 HP
1725115/230145TRolled Steel
3 HP
1165115/230215Rolled Steel
1725115/230215Rolled Steel
1725115/230184TRolled Steel
3/4 HP
1725115/23056Rolled Steel
1725115/23056Rolled Steel
1725115/23056Rolled Steel
5 HP
1725230213TRolled Steel
1750230215Rolled Steel
1750230213TRolled Steel
3450230184TRolled Steel
7-1/2 HP
1745230215TRolled Steel
3450230213TRolled Steel
1 HP
1760208-230/460143TCSteel
1-1/2 HP
1755230/460145TCSteel
10 HP
1770208-230/460215TCSteel
2 HP
1750230/460145TCSteel
3 HP
1765230/460182TCSteel
5 HP
1750208-230/460184TCSteel
7-1/2 HP
1770208-230/460213TCSteel
1 HP
1725115/23056CRolled Steel
1725115/23056CRolled Steel
1-1/2 HP
1725115/23056CRolled Steel
3450115/23056CRolled Steel
1/2 HP
1725115/23056CRolled Steel
1/3 HP
1725115/23056CRolled Steel
2 HP
3450115/23056CRolled Steel
3/4 HP
1725115/23056CRolled Steel



















































Posted by at
Labels: , , ,

No comments:

Post a Comment

Subscribe to: Post Comments (Atom)
