| LPSV SERVICE KIT | ||
| KIT NUMBER | PARTS | DESCRIPTION |
| FCCA1272A | KIT LOW PRESS SUCTION VALVE FOR D96 | |
| FVB915 | GASKET VALVE COPPER | |
| FCBB938 | PIN UNLOADER LOW PRESSURE | |
| FCB982 | WASHER UNLOADER PIN | |
| FSK-D96LPSV | FCA29935 | SPRING AUXILIARY UNLOADER PIN |
| FVH25CB | PIN ROLL 3/32 X 1/4 | |
| FCR2236 | PLUG SUCTION VALVE | |
| FCBB935 | CYLINDER UNLOADER LP SUCTION VALVE ASSY | |
| FCB970 | FORK | |
| LPDV SERVICE KIT | ||
| KIT NUMBER | PARTS | DESCRIPTION |
| FCCA1273-P | KIT LOW PRESS DISCH VALVE FOR D96 | |
| FVB914 | GASKET VALVE COPPER | |
| FVB909 | GASKET COPPER 2-3/8 X 2-5/8 X 3/32 | |
| FSK-D96LPDV | 2601041160 | VALVE DISCHARGE PLUG |
| FVH1223 | WASHER 17/32 X 45/64 X 0.05 COPPER | |
| FVH09PM | SCREW HEX HOL HD FLAT 1/2-13X1-1/2 BL OX | |
| FCCB1267 | NUT CAP | |
| HP VALVE SERVICE KITS | ||
| HPSV SERVICE KIT | ||
| KIT NUMBER | PARTS | DESCRIPTION |
| FCCA1275A | KIT HIGH PRESS SUCTION VALVE FOR D96 | |
| FCC1325 | GASKET HIGH PRESSURE VALVE - COPPER | |
| FCC1297 | CLAMP NUT (OLD # CC1224) | |
| FVB912 | GASKET VALVE COPPER | |
| FSK-D96HPSV | ||
| FCBB937 | PIN UNLOADER HIGH PRESSURE | |
| FCA2996 | SPRING UNLOADER | |
| FCB9037 | CAP CLAMP NUT | |
| FCBB926 | CYLINDER UNLOADER HP SUCTION VALVE ASSY | |
| HPDV SERVICE KIT | ||
| KIT NUMBER | PARTS | DESCRIPTION |
| FCCA1276-P | KIT HIGH PRESS DISCH VALVE FOR D96 | |
| FVB911 | GASKET VALVE COPPER | |
| FSK-D96HPDV | FCC1297 | CLAMP NUT (OLD # CC1224) |
| FCC1325 | GASKET HIGH PRESSURE VALVE - COPPER | |
| FCU2364 | CLAMP NUT CAP | |
| REBUILD SERVICE KITS | ||
| LOWER END REBUILD SERVICE KIT | ||
| KIT NUMBER | PARTS | DESCRIPTION |
| FCC1307 | SET CONNECTING ROD BEARING | |
| FCQ883R | PISTON PIN BUSHING - SERVICE ONLY | |
| FCO1915 | FCCA1217 | RING SET HP D97, LP D96 |
| FCCA1216 | RING SET HIGH PRESSURE FOR D96 | |
| FSK-D96GK | GASKET SET FOR D96T | |
| FVB305 | OIL SEAL 1-7/16ID X 2-1/8 OD X 1/8 THICK | |
| REBUILD SERVICE KIT | ||
| KIT NUMBER | PARTS | DESCRIPTION |
| FCO1915 | KIT LOWER END REBUILD D9601 & LATER | |
| FVA1118 | FILTER ELEMENT | |
| FSK-D96RK | FSK-D96LPSV | KIT, VALVE REPLACEMENT D96 L.P.S.V. |
| FSK-D96LPDV | KIT, VALVE REPLACEMENT D96 L.P.D.V. | |
| FSK-D96HPSV | KIT, VALVE REPLACEMENT D96 H.P.S.V. | |
| FSK-D96HPDV | KIT, VALVE REPLACEMENT D96 H.P.D.V. | |
| GASKET SERVICE KIT | ||
| GASKET SERVICE KIT | ||
| KIT NUMBER | PARTS | DESCRIPTION |
| FVB915 | GASKET VALVE COPPER | |
| FVB914 | GASKET VALVE COPPER | |
| FVB909 | GASKET COPPER 2-3/8 X 2-5/8 X 3/32 | |
| FCC1232 | GASKET CYLINDER HEAD D96 | |
| FVB912 | GASKET VALVE COPPER | |
| FCC1325 | GASKET HIGH PRESSURE VALVE - COPPER | |
| FSK-D96GK | ||
| FVB911 | GASKET VALVE COPPER | |
| FCR2012 | GASKET LARGE END | |
| FCCB1228 | GASKET CYLINDER CRANKCASE | |
| FVA208A | SIGHT GLASS GASKET | |
| FCCB1249 | PLATE GASKET SE | |
| FCA2312A | GASKET/FLANGE COVER PLATE - REPL CA2312 | |
| PISTON RING SERVICE KIT | ||
| KIT NUMBER | PARTS | DESCRIPTION |
| FSK-D96RNG | FCCA1217 | RING SET HP D97, LP D96 |
| FCCA1216 | RING SET HIGH PRESSURE FOR D96 | |
| 1000 HR SERVICE KIT | ||
| KIT NUMBER | PARTS | DESCRIPTION |
| FVA1118 | FILTER ELEMENT 1 | |
| FSK-D9610SK | ||
| FSC-1000QT | OIL FSC-1000 1 QUART RECIP OIL |
AIR COMPRESSOR SERVICE
E15C COMPRESSOR PARTS
CURTIS D96A PUMP
CURTIS 15-20HP COMPRESSOR PARTS
AIR COMPRESSOR PUMP REPAIR
AIR COMPRESSOR MOTOR REPAIR
AIR COMPRESSOR DRYER
AIR COMPRESSOR DRYER SERVICE
214-428-2868
AIR COMPRESSOR PARTS
AIR COMPRESSOR OIL
CALL H&k PUMP FOR SALES AND SERVICE. WE REBUILD ALL CURTIS COMPRESSOR PUMPS. IN ADDITION, WE TYPICALLY KEEP MOST OF THE PARTS IN STOCK EITHER INSIDE OUR WAREHOUSE OR AT THE CORPORATE OFFICE. WE DROP SHIP DIRECTLY TO YOU.
214-428-2868
CALL FOR PRICES AND AVAILABILITY:
214-428-2868
| PARTS LIST - GENERAL ASSEMBLY | ||||
| ITEM NO | DESCRIPTION | Q | PART NUMBER | |
| 1 | CRANKSHAFT | 1 | FCCB1247 | |
| 2 | CONE-BEARING BLANK SIDE | 1 | FVD846 | |
| 3 | CONE-BEARING FLYWHEEL | 1 | FVD845 | |
| 4 | CRANK CASE (MACHINING) | 1 | 2689020660 | |
| 5 | CUP-BEARING | 1 | - | |
| 6 | RING-ADJUSTMENT | 1 | FCCB1225 | |
| 7 | PLATE-BEARING ADJUSTMENT | 1 | FCCB1224 | |
| 8 | S. E. PLATE GASKET | 1 | FCCB1249 | |
| 9 | PLATE-SMALL END | 1 | 2601038930 | |
| 10 | HHCS 3/8-16 X 1" GRADE 5 ZINC PLATED | 9 | FVH12KH1 | |
| 11 | SCREW-3/8 X 1.25 HEX.-SOC. HEAD | 1 | FVH08KK | |
| 12 | NUT-HEX-JAM 3/8-16 | 1 | FVH16K | |
| 13 | NUT-STUD | 1 | FRK2063 | |
| 14 | GASKET, FLANGE COVER PLATE | 1 | FCA2312A | |
| 15 | LOW OIL GUARD COVER | 1 | FCA2323 | |
| 16 | LOCKWASHER 1/4'' | 2 | FVH35F1 | |
| 17 | HHCS 1/4-20 X 1/2" GR 5, ZINC | 2 | FVH12FD1 | |
| 18 | PLUG-SQUARE HEAD-STEEL 1/4" | 1 | FPTP02AS | |
| 19 | GASKET-SIGHT GLASS | 1 | FVA208A | |
| 20 | BODY-SIGHT GLASS | 1 | FVA208B | |
| 21 | ELBOW 90DEG ST 1/2 NPT MI GALV | 1 | FPTS04AG | |
| 22 | CAP, BREATHER | 1 | 2601026671 | |
| 23 | ASSY, OIL CAP WITH O-RING | 1 | 2601024880 | |
| 24 | RING-OILING 6 7/8 X 10 GA. | 1 | FCCA1291 | |
| 25 | COTTER PIN 3/16 X 3 | 1 | FVH23FT | |
| 26 | CUP-BEARING | 1 | - | |
| 27 | GASKET-LARGE END PLATE | 1 | FCR2012 | |
| 28 | LARGE END PLATE | 1 | FCC1387A | |
| 29 | OIL SEAL 1-7/16ID X 2-1/8 OD X 2/8 THICK | 1 | FVB305 | |
| 30 | PLUG SQ HEAD 1/8 NPT BLACK STEEL | 2 | FPTP01AB | |
| 31 | GASKET-CYLINDER CRANKCASE | 1 | FCCB1228 | |
| 32 | D96 CYLINDER | 1 | 2689020670 | |
| 33 | HHCS 7/16-14UNC X 1 1/4 | 6 | FVH12MK1 | |
| 34 | H.P. PISTON ASSEMBLY | 1 | - | |
| 35 | L.P. PISTON ASSEMBLY | 1 | - | |
| 36 | GASKET-CYLINDER HEAD | 1 | FCC1232 | |
| 37 | HEAD CYLINDER ASSY | 1 | - | |
| 38 | HHCS 3/8-16UNC X 3 GRADE 5 | 7 | FVH12KT | |
| 39 | INTERCOOLER | 1 | FCCC1261 | |
| 40 | NIPPLE 1" X 4" | 1 | FPTN0613AG | |
| 41 | ELBOW 90DEG 1 NPT MI GALV 150PSI | 1 | FPTE06AG | |
| 42 | FILTER 1 NPT | 1 | FVA1119 | |
| 43 | INTERCOOLER SUPPORT | 1 | FCCC1262 | |
| 44 | LOCKWASHER 3/8" ZINC PLATED | 1 | FVH35K1 | |
| 45 | SCREW SQ HD CUP 3/8-16UNC X 1-1/2 PLAIN | 1 | FVH07KM | |
| 46 | NUT-FINISHED-HEX 1/4-20 ZINC PLATED | 1 | FVH15F1 | |
| 47 | KEY, FLYWHEEL 1/4"SQ X 3"LG, CRS | 1 | FCCB1273 | |
| 48 | WASHER ALUMINUM 9/16 | 1 | FVH1232 | |
| 35 | L.P. PISTON ASSEMBLY | 1 | - | |
| 36 | GASKET-CYLINDER HEAD | 1 | FCC1232 | |
| 37 | HEAD CYLINDER ASSY | 1 | - | |
| 38 | HHCS 3/8-16UNC X 3 GRADE 5 | 7 | FVH12KT | |
| 39 | INTERCOOLER | 1 | FCCC1261 | |
| 40 | NIPPLE 1" X 4" | 1 | FPTN0613AG | |
| 41 | ELBOW 90DEG 1 NPT MI GALV 150PSI | 1 | FPTE06AG | |
| 42 | FILTER 1 NPT | 1 | FVA1119 | |
| 43 | INTERCOOLER SUPPORT | 1 | FCCC1262 | |
| 44 | LOCKWASHER 3/8" ZINC PLATED | 1 | FVH35K1 | |
| 45 | SCREW SQ HD CUP 3/8-16UNC X 1-1/2 PLAIN | 1 | FVH07KM | |
| 46 | NUT-FINISHED-HEX 1/4-20 ZINC PLATED | 1 | FVH15F1 | |
| 47 | KEY, FLYWHEEL 1/4"SQ X 3"LG, CRS | 1 | FCCB1273 | |
| 48 | WASHER ALUMINUM 9/16 | 1 | FVH1232 | |

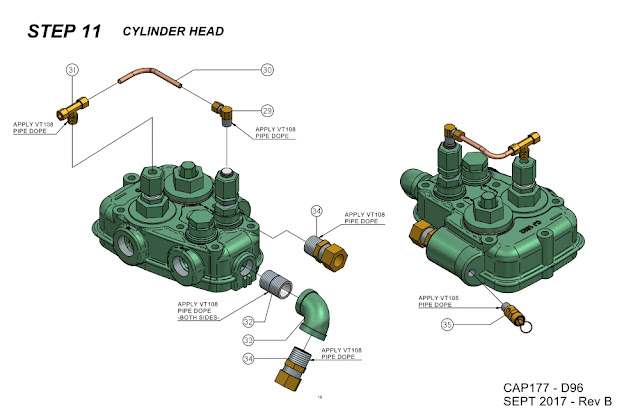

| PARTS LIST - CYLINDER HEAD ASSEMBLY | ||||
| ITEM NO | DESCRIPTION | Q | PART NUMBER | NOTES |
| 1 | CYLINDER HEAD | 1 | FCCB1256 | |
| 2 | GASKET-COPPER-VALVE | 1 | FVB915 | |
| 3 | L.P. SUCTION VALVE ASSEMBLY | 1 | FCCA1272A | *IN KIT FSK-D96LPSV |
| 4 | PIN-UNLOADER | 1 | FCBB938 | |
| 5 | WASHER-UNLOADER PIN | 1 | FCB982 | |
| 6 | FORK | 1 | FCB970 | |
| 7 | SPRING-AUXILLARY UNLOADER PIN | 1 | FCA29935 | |
| 8 | H.P. SUCTION VALVE PLUG | 1 | FCR2236 | |
| 9 | ROLL PIN 3/32 X 1/4 | 1 | FVH25CB | |
| 10 | L.P. SUCTION VALVE ASSEMBLY - UNLOADER | 1 | FCBB935 | SEE STEP #5 |
| 11 | GASKET-COPPER-VALVE | 1 | FVB914 | |
| 12 | L.P. DISCHARGE VALVE ASSEMBLY | 1 | FCAA1273A | *IN KIT FSK-D96LPDV |
| 13 | GASKET-COPPER 2 3/8 X 2 5/8 X 3/32 | 1 | FVB909 | |
| 14 | PLUG - H.P. DISCHARGE VALVE | 1 | 2601041160 | |
| 15 | WASHER-COPPER 17/32 X 45/64 X 0.05 | 1 | FVH1223 | |
| 16 | SCREW-SET-HEX. HOL. FLAT PT 1/2-13 X 1 1/2 | 1 | FVH09PM | |
| 17 | NUT-CAP | 1 | FCCB1267 | |
| 18 | GASKET-COPPER-VALVE | 1 | FVB912 | |
| 19 | H.P. SUCTION VALVE ASSEMBLY | 1 | FCCA1275A | *IN KIT FSK-D96HPSV |
| 20 | CLAMP NUT | 2 | FCC1297 | |
| 21 | GASKET-H.P. VALVE-COPPER | 2 | FCC1325 | |
| 22 | CAP,CLAMP NUT | 1 | FCB9037 | |
| 23 | PIN-UNLOADER HP. | 1 | FCBB937 | |
| 24 | SPRING-UNLOADER | 1 | FCA2996 | |
| 25 | H.P. SUCTION VALVE UNLOADER ASSEMBLY | 1 | FCBB926 | SEE STEP #6 |
| 26 | GASKET-COPPER-VALVE | 1 | FVB911 | |
| 27 | H.P. DISCHARGE VALVE ASSEMBLY | 1 | FCCA1276A | *IN KIT FSK-D96HPDV |
| 28 | CLAMP NUT CAP | 1 | FCU2364 | |
| 29 | ELBOW-COMPRESSION W/ SLEEVE AND NUT | 1 | FVA15BCE | |
| 30 | TUBING-UNLOADER | 1 | FCBB939 | |
| 31 | TEE COMPRESSOR 1/8 NPT X 1/4 OD X 1/4 OD | 1 | FVA729 | |
| 32 | NIPPLE-BLACK-CLOSE 3/4" | 1 | FPTN0500AG | |
| 33 | ELBOW 90 DEG 3/4" | 1 | FPTE05AG | |
| 34 | CONNECTOR 3/4 X 3/4 | 2 | FVA14EHE | |
| 35 | SAFETY VALVE 1/4" | 1 | FVV405 |
